| Processor Specifications | CPU: | Intel i7-1270P / i7-1280P / 1340P / 1360P (TDP: 28W) Intel i7-12700H / i7-12900H / 13700H / 13900H (TDP: 45W) |
Internal Storage | Memory type: | DDR4 2133 - 3200 MHz or 2 × DDR5 4800 - 5200 MHz |
| CPU Platform: | Intel 12th Generation or 13th Generation CPU | Memory slot: | 2 × DDR4 SO-DIMM (up to 64GB) or 2 × DDR5 SO-DIMM (up to 96GB) | ||
| Video card: | Intel® Iris® Xe Graphics — Support for 4-display | ||||

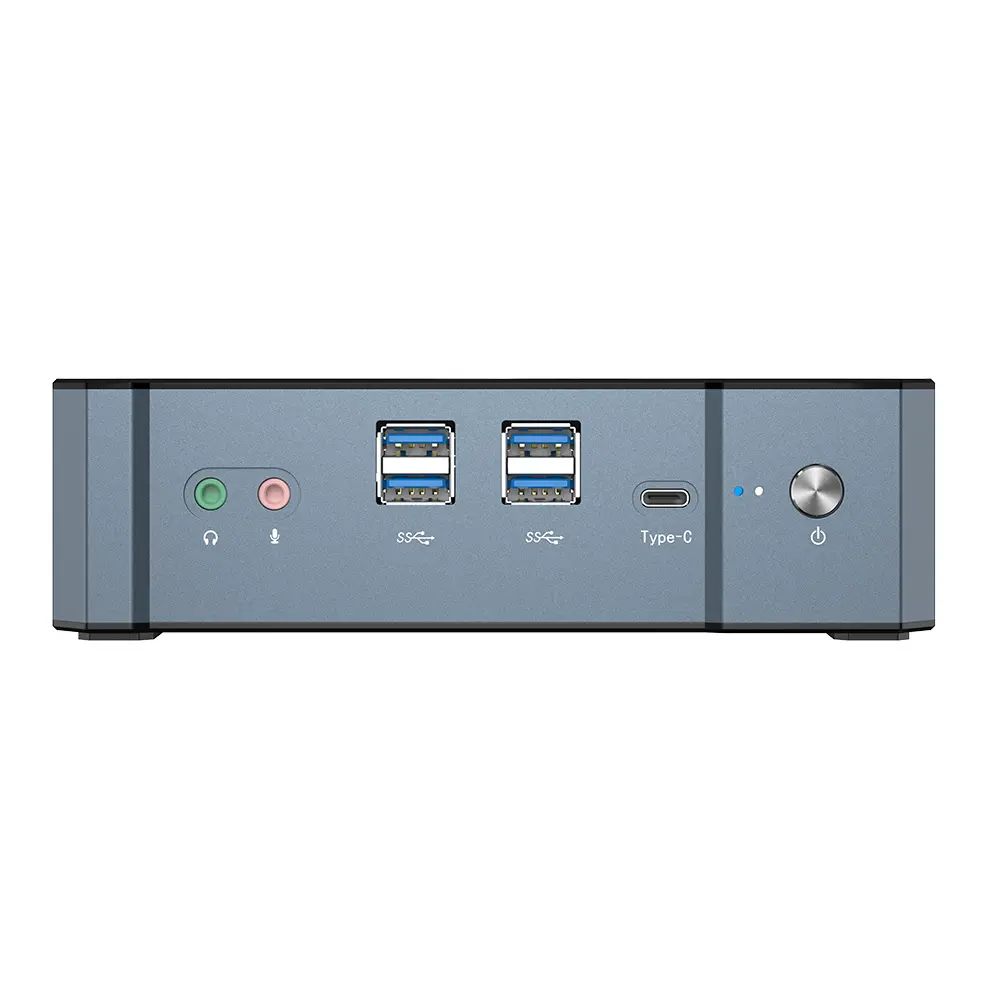

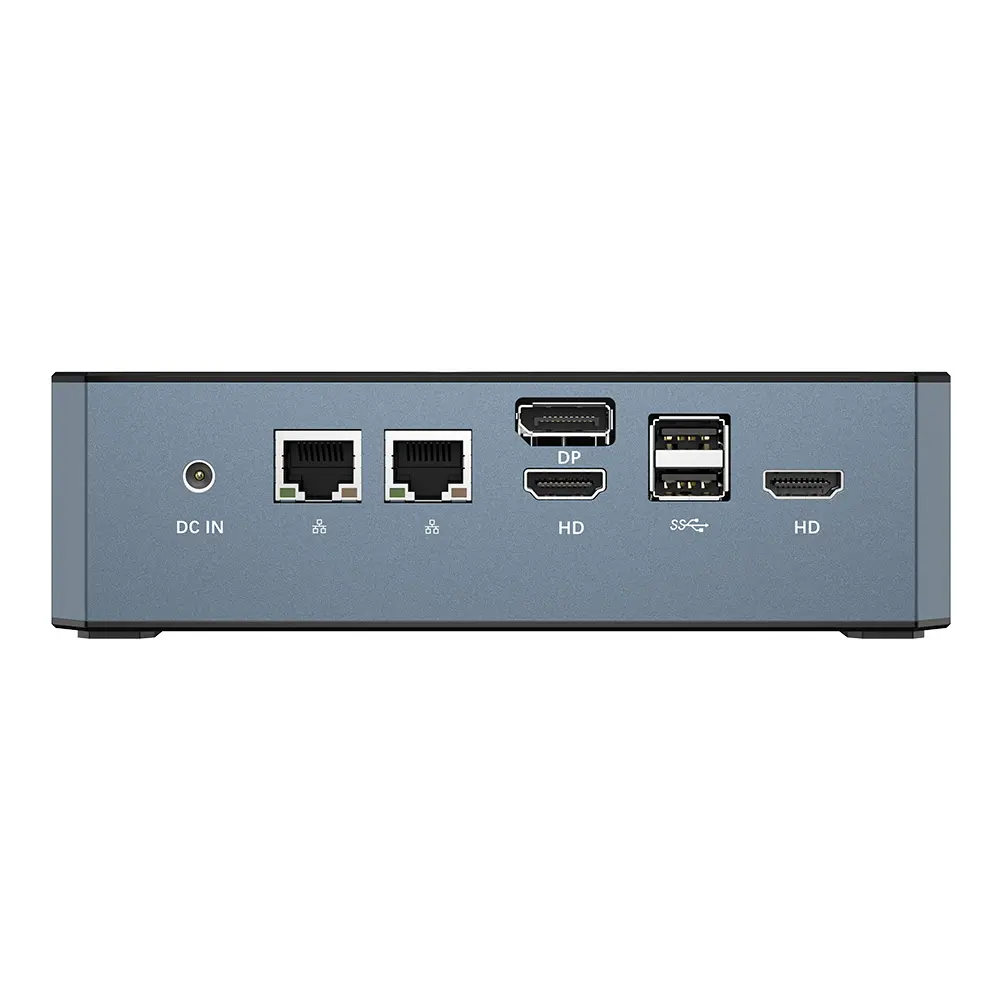

| Front Panel | Boot button: | 1 × Power Button | Back Panel | Power port: | 1 × DC Jack 5.5×2.5mm (12–19V) |
| Thunderbolt: | 1 × Thunderbolt 4 (compatible with PD power supply) | Network interface: | 2 × RJ45 2500M | ||
| USB ports: | 4 × USB 3.2 Gen1 | Display interface: | 2 × HDMI 2.0 (4K 60Hz), 1 × DP 1.4, 1 × Type-C Thunderbolt 4 | ||
| Audio interface: | 1 × 3.5mm Earphone / 1 × 3.5mm MIC In | USB ports: | 2 × USB 2.0 | ||
| Expansion Slot | WiFi slot: | 1 × M.2 2230 slot (WiFi / BT support, 802.11 b/g/n/AC/AX) | Other Parameters | Dimensions: | 174 × 128 × 45 mm |
| SSD slot: | 1 × M.2 2280 (SATA / NVMe Gen3 ×4), 1 × M.2 2280 (NVMe PCIe Gen4 ×4) | Weight: | Approx. 500g | ||
| HDD: | 1 × SATA HDD 2.5-inch (optional) | Power adapter: | 12V–19V 90W | ||
| BIOS support: | AMI UEFI BIOS, Support for PXE, WOL | ||||
| Work Environment | Temp: 0–50℃ | Humidity: 5%–95% | Storage Environment | Temp: -20–70℃ | Humidity: 5%–95% | ||
