| Processor | CPU: | Intel Comet Lake-U 15W Core i7-10510U / i5-10210U / i3-10110U 5205U | Storage | Memory Type: | DDR4 2133MHz/2400MHz/2666MHz |
| Video Card: | Intel® UHD Graphics Support for 3-display | Memory Slot: | 1*DDR4 S0-DIMM | ||

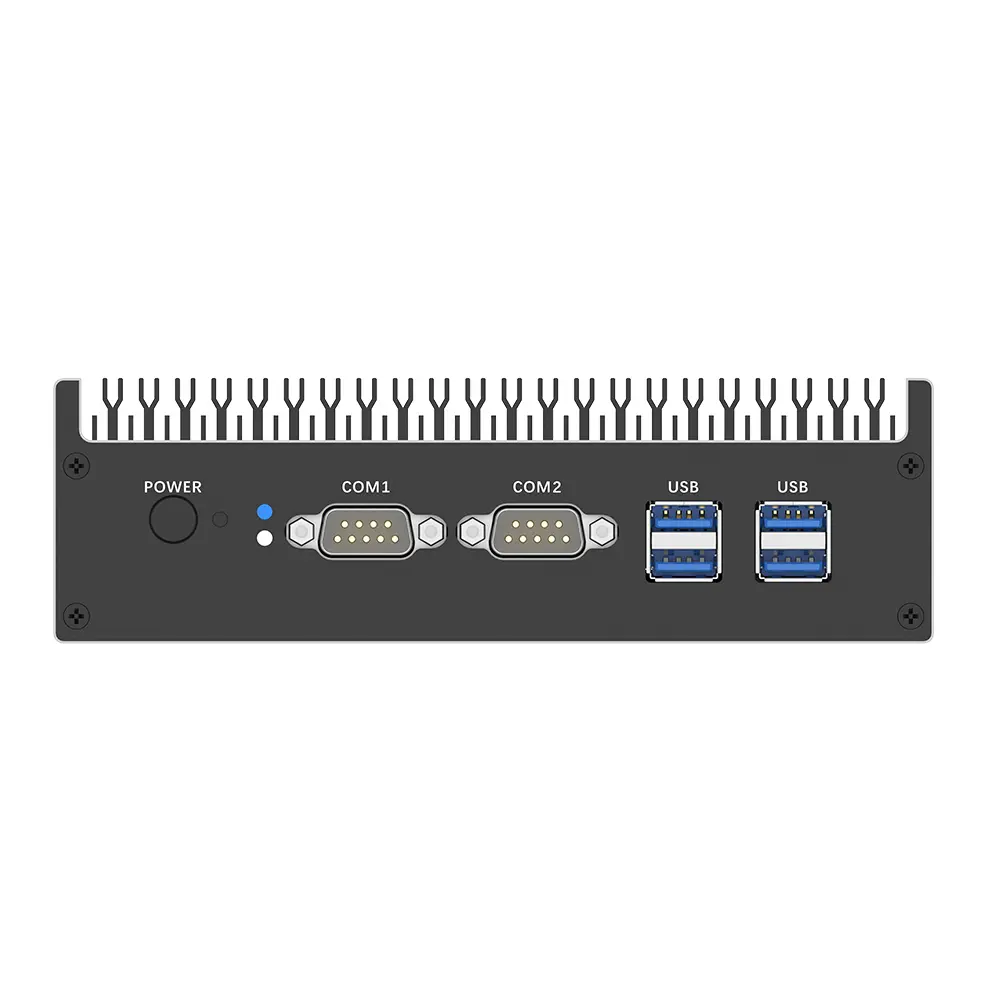

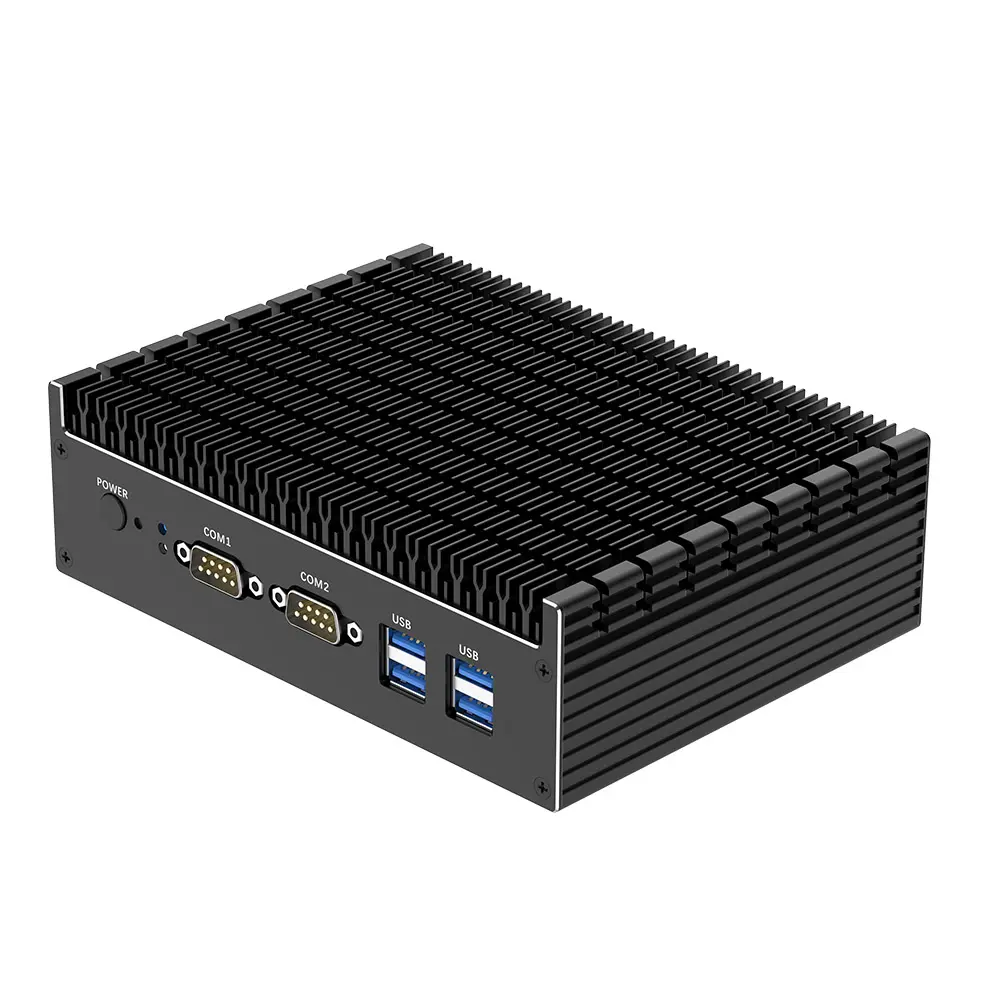

| Front Panel | Buttons: | 1*Power-on button and 1*Reset | Back Panel | Power Port: | 1*DC Jack 5.5*2.5mm(12-19V) |
| Indicator: | 1*Power LED 1*HDD LED | Network: | 6*RJ45 2500M (LAN5 and R_USB4 Colay) | ||
| USB: | 4*USB3.0 | Display: | 1* HDMI Out 1.4 / 1*DP 1.2 | ||
| COM: | 2*RS232 DB9 | USB: | 2 *USB 2.0 (or LAN5) | ||
| Expansion | WiFi Slot: | 1*M.2 2230 (WIFI/BT support) 802.11 b/g/n/ac/ax | Physical | Dimensions: | 170*126*51.3mm |
| SSD Slot: | 1*M.2 2280 (SATA / NVME Gen3 X4) | Weight: | About 945g | ||
| HDD: | 1*SATA HDD 2.5 inch (optional) | Power: | 12V-19V 40W | ||
| BIOS: | AMI UEFI BIOS, Support for PXE, WOL | ||||
| Working Environment | Temp: 0~50℃ Humidity: 5%~95% | Storage Environment | Temp: -20~70℃ Humidity: 5%~95% | ||
Equipped with Intel's 10th-generation Core i7-10510U to Celeron 5205U processors (4 cores, 8 threads, 15W TDP), it achieves a precise balance between performance and power consumption through dynamic frequency modulation technology (1.1GHz~4.9GHz).
Multi-tasking: Drive 6-way 2.5G network data packet forwarding at the same time, CPU occupancy ≤35%
Graphics Acceleration: Intel UHD Graphics supports three-screen display (HDMI 1.4+DP 1.2+VGA extension), 4K H.265 decoding delay <8ms

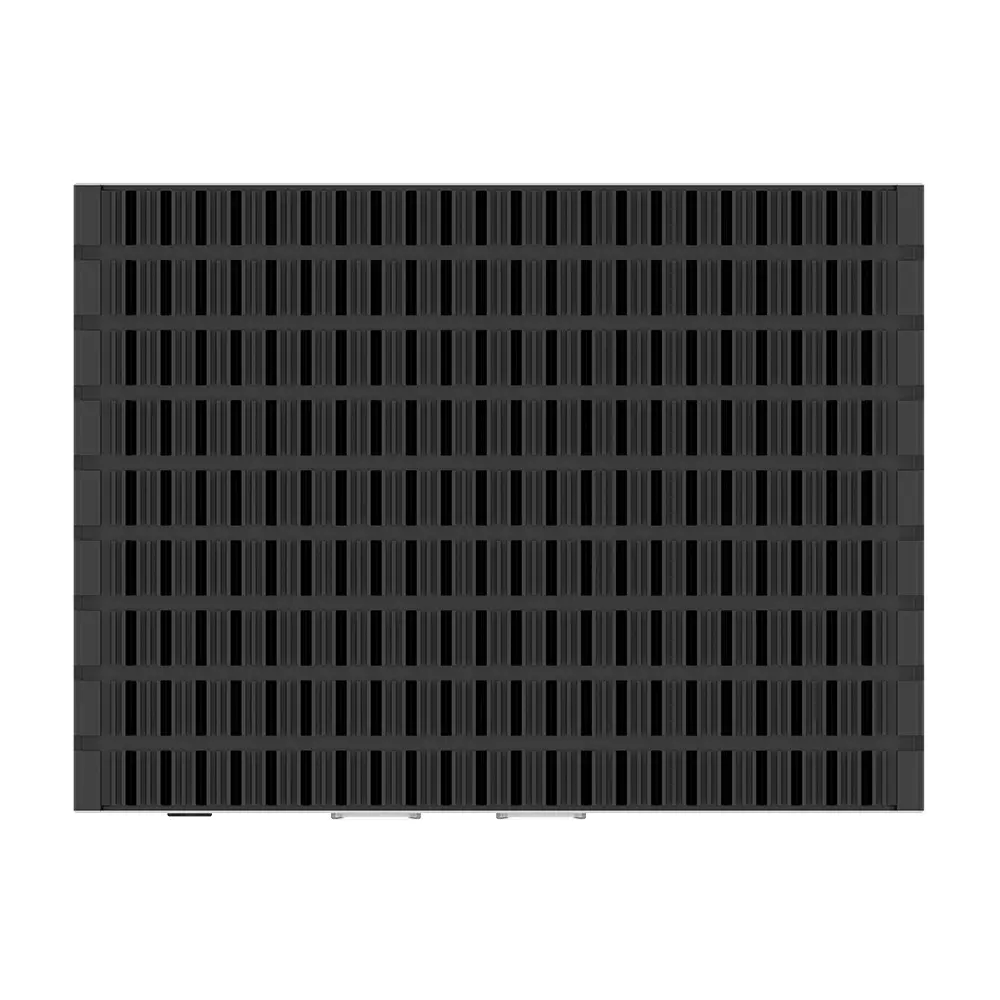

Cooling Architecture: Fanless aluminum fin passive cooling design, continuous full load operation without frequency reduction at 50℃ ambient temperature

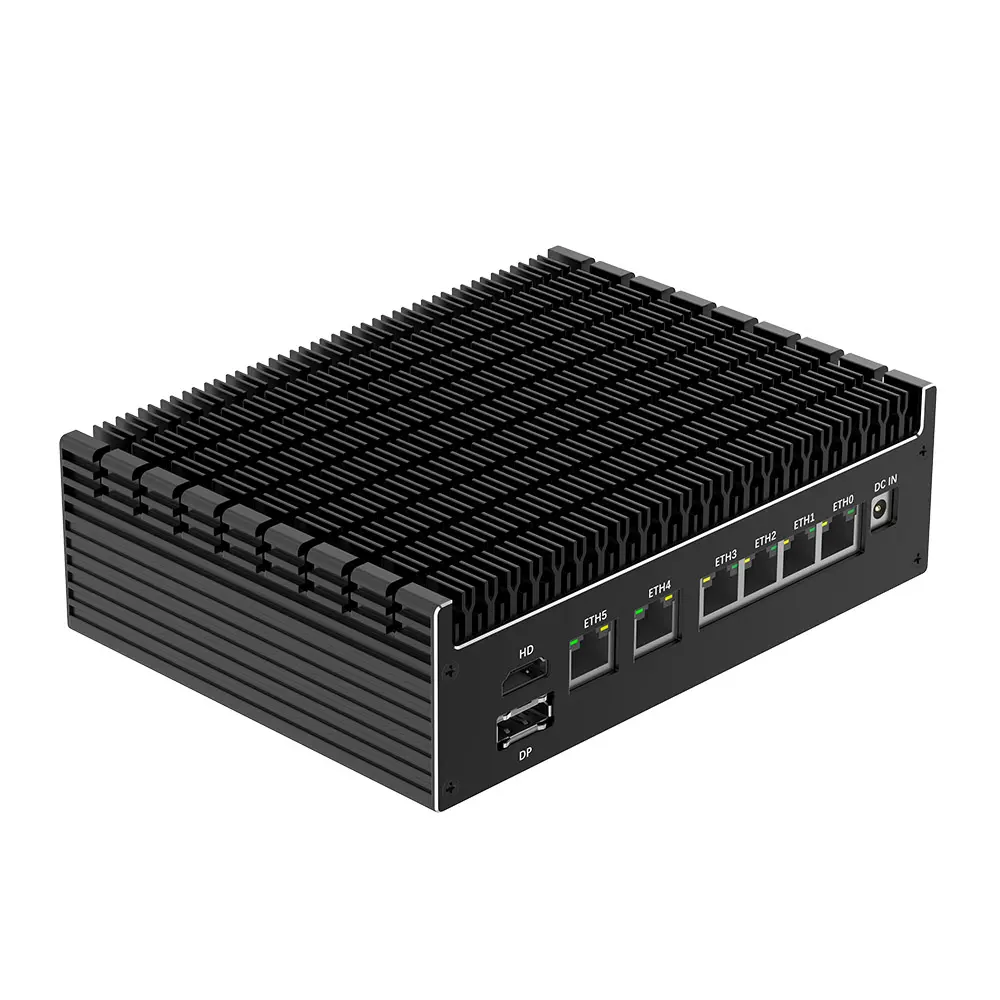

6-way RJ45 2.5G network port (including LAN5 and USB4 multiplexing interface), support VLAN division and port aggregation, bandwidth peak up to 15Gbps. Hardware-level network isolation technology ensures that PLC control, video monitoring, and data acquisition services do not interfere with each other.
Protocol Compatibility: Dual RS232 DB9 serial port supports Modbus RTU/Profibus protocol direct connection, baud rate adaptive (0~921.6kbps). USB2.0 and GPIO expansion slots can connect special equipment like barcode scanners and temperature sensors.
Storage Configuration: 1×M.2 2280 slot (NVMe/SATA dual protocol, max 4TB). Optional 2.5-inch SATA HDD with anti-seismic design (passed 5Grms vibration test).
Wireless Expansion: M.2 2230 slot for WiFi 6 (802.11ax, 160MHz bandwidth) or Bluetooth 5.2. Supports LoRa/Zigbee gateway expansion via customized shell.

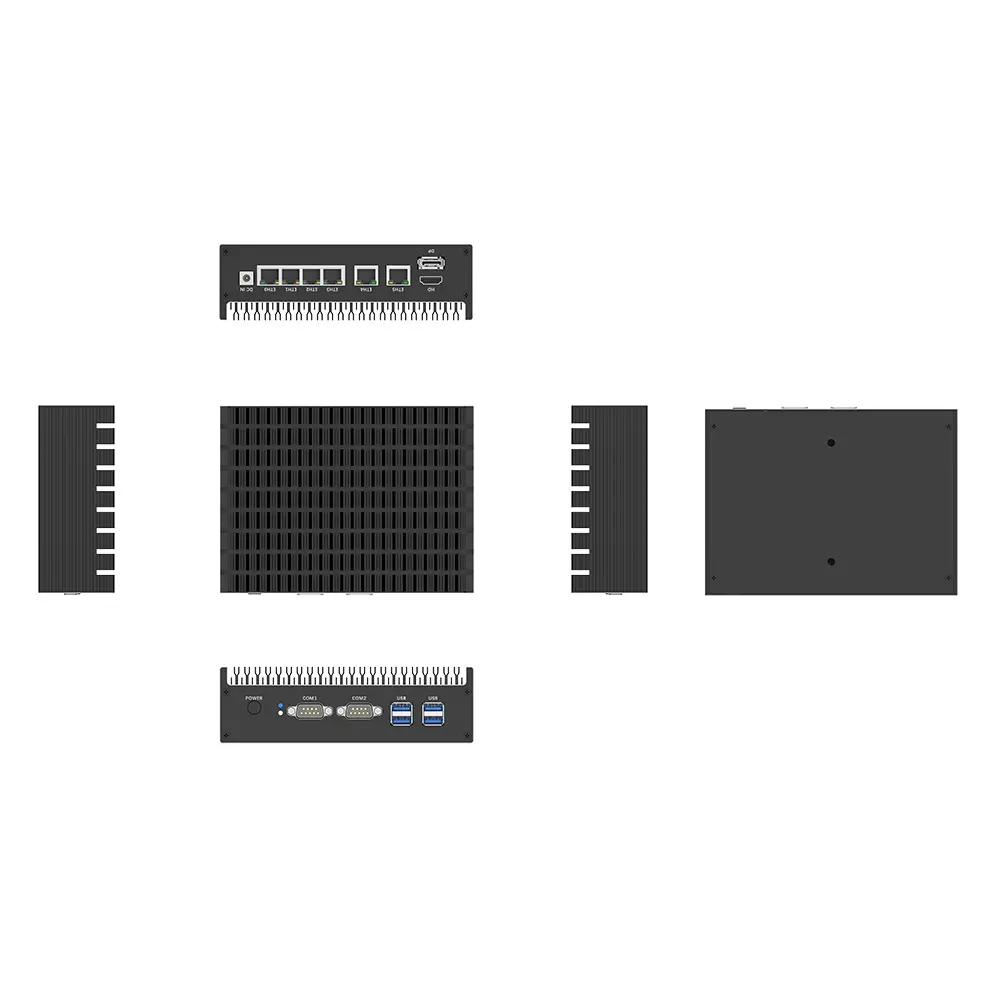

Mechanical Engineering: 170×126×51.3mm full metal shell (945g), IP40 protection. Surface hard anodized, salt spray corrosion resistance > 96 hours. Wall-mounted/guide rail installation, seismic performance up to 5G@10~500Hz.
Power Management: 12-19V wide voltage input (compatible with PoE++), 40W ultra-low power consumption. Supports WOL network wake-up and timed power on/off.
Connect 32 PLC devices simultaneously (6 network ports + serial port shunt), OPC UA protocol conversion delay <2ms. Optional -20℃ low temperature startup kit.
Equipped with TensorFlow Lite inference engine, supports 8-way camera AI behavior analysis (3.2TOPS). Local data preprocessing (LZO compression) reduces bandwidth usage by 70%.
Three-screen display supports 4K menu board + 2×FHD advertising screen synchronous playback with 365-day schedule presets.
Hardware Deep Adaptation: BIOS customization (SMARC module replacement/GPIO remapping) and interface expansion (CAN bus/4G module/relay control).
Operation & Maintenance: Integrated iAMT 11.0 technology for remote management, fault diagnosis response <15 minutes. Dual BIOS chip design for safe firmware hot updates.
Harsh Environment Verification: Passed MIL-STD-810G impact and IEC 60068-2-64 vibration tests. Standard 0~50℃ operation (expandable to -40~75℃).
