Custom Low-power Micro Mini PC BQM2 With DP HDMI Companies, Factory

Processor specifications	CPU:	Intel Comet Lake-U 15W Core i7-10510U / i5-10210U / i3-10110U 5205U
Processor specifications	video card:	Intel® UHD Graphics

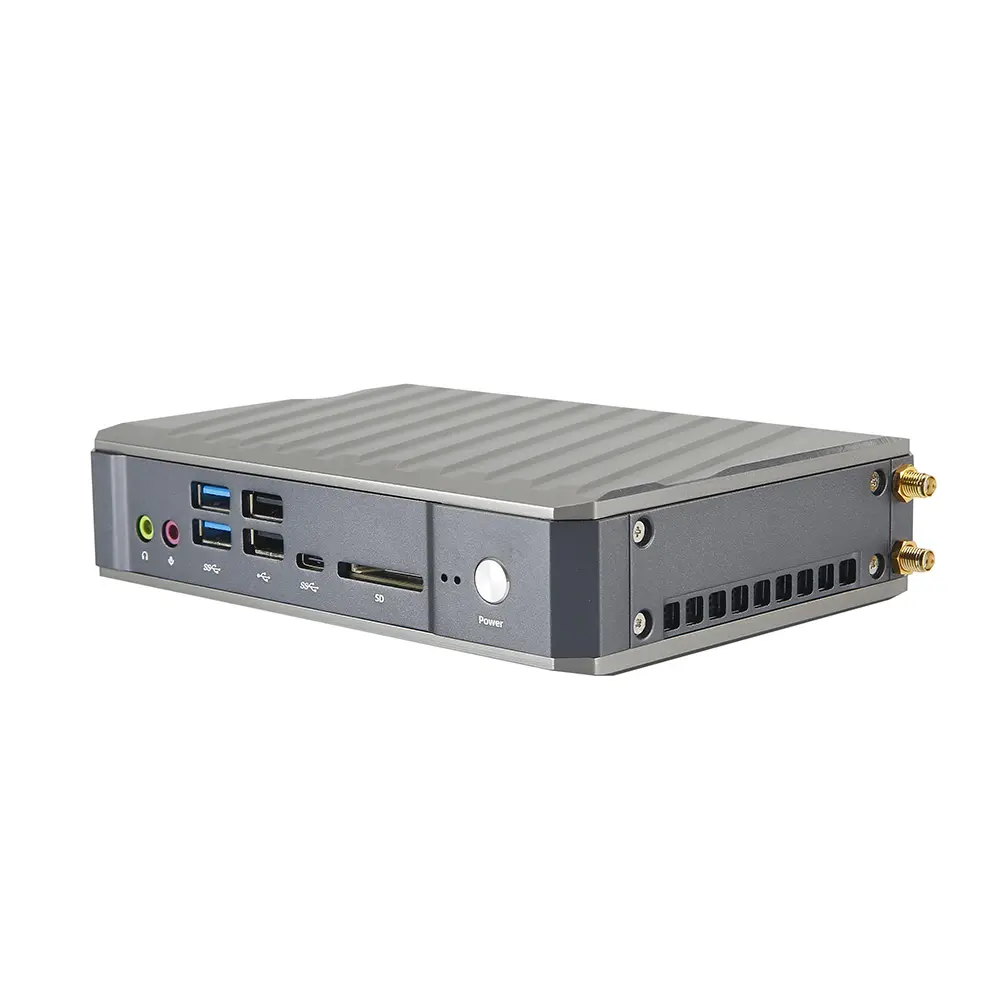

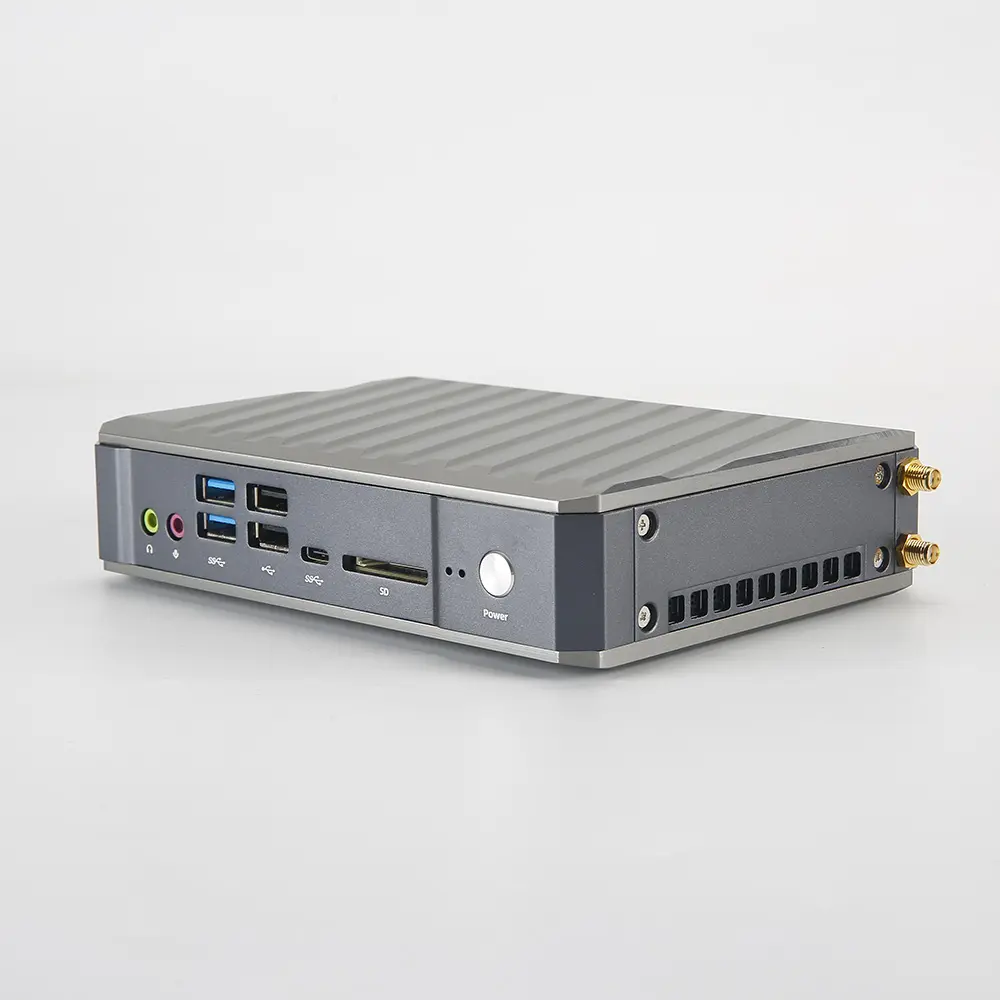

Front panel	Power-on key / indicator light:	1Power-on button 1Power LED 1*HDD LED
	SD Card:	1*SD Card
	USB joggle:	2USB3.0 2USB2.0
	Type-C:	1*Type-C
	Audio interface:	13.5mm earphone / 13.5mm MIC in

Send Inquiry

Product Description

Product Detailed Specification

Processor specifications	CPU:	Intel Comet Lake-U 15W Core i7-10510U / i5-10210U / i3-10110U 5205U	Internal storage	Memory type:	DDR4 2133MHz/2400MHz/2666MHz
Processor specifications	video card:	Intel® UHD Graphics	Internal storage	Memory slot:	2*DDR4 S0-DIMM

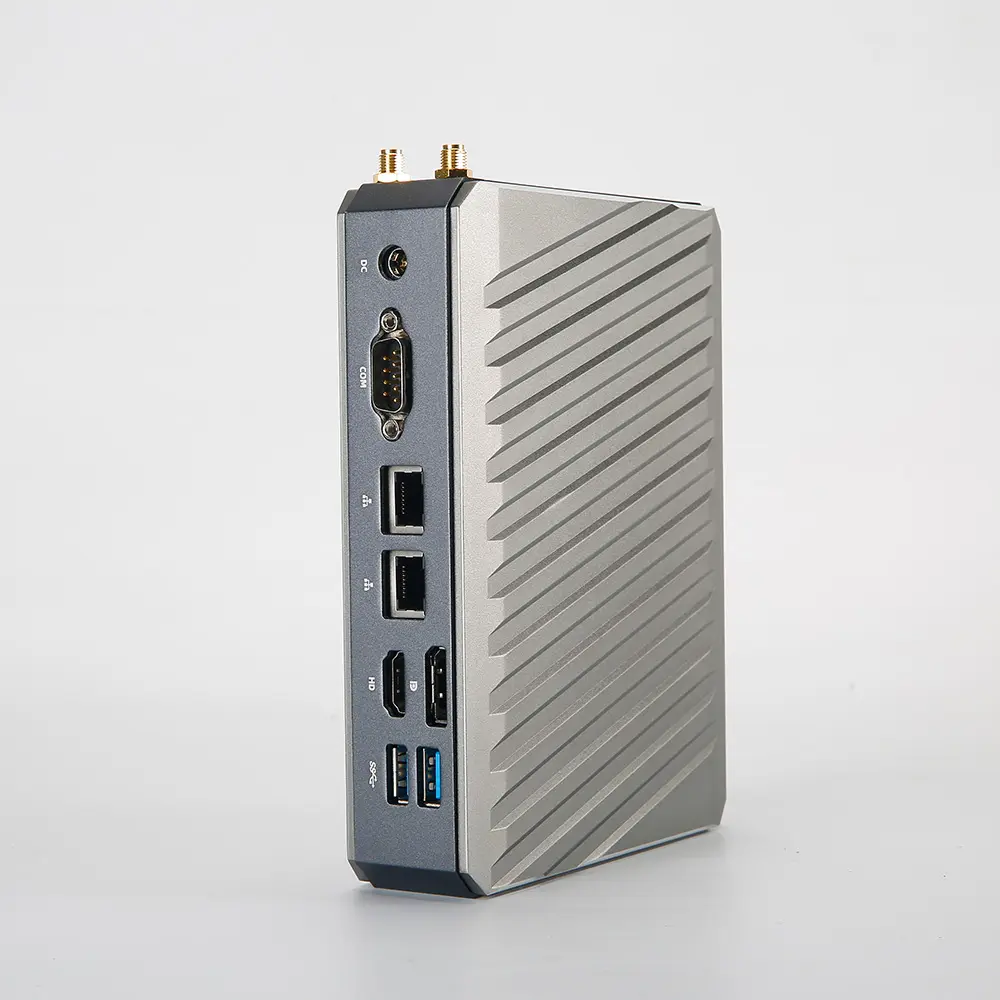

Front panel	Power-on key / indicator light:	1Power-on button 1Power LED 1*HDD LED	Back panel	Power port:	1DC Jack 5.52.5mm(12-19V)
	SD Card:	1*SD Card		network interface:	2*RJ45 1000M
	USB joggle:	2USB3.0 2USB2.0		Displays the interface:	1HDMI 0ut 2.0 / 1DP 1.2
	Type-C:	1*Type-C		USB joggle:	2*USB3.0
	Audio interface:	13.5mm earphone / 13.5mm MIC in		COM mouth:	1*RS232 DB9
Extended slot	WiFi slot:	1 *M. 2 2230 slot (WIFI / BT support) WIFI: 802.11 b / g / n / AC / AX Bluetooth 4.0 or above	Other parameters	Appearance size:	168.4128.440mm
	SSD slot:	1*M. 2 2280 slot (SATA / NVME Gen3 X4)		Ontology weight:	About 870g
	HDD:	1*SATA HDD 2.5inch (optional)		Power adapter:	12V-19V 40W
	HDD:	1*SATA HDD 2.5inch (optional)		B10S support:	AMI UEFI BI0S, Support for PXE, WOL
Work environment:		Temperature: 0~50℃ Humidity: 5%~95%	Storage environment:		Temperature: -20~70℃ Humidity: 5%~95%

Dual-channel DDR4 Architecture

High-Efficiency Performance

Equipped with Intel's 10th-generation Core i7-10510U to Celeron 5205U processors (4 cores and 8 threads, 15W TDP), with dual DDR4 SO-DIMM slots (supporting up to 64GB 2666MHz memory). Data throughput efficiency is increased by 73% compared to single-channel systems.

Energy efficiency optimization: Dynamic voltage frequency scaling (DVFS) technology ensures power consumption fluctuations under multi-task loads are controlled within ±5%.

Actual Performance Metrics

CPU occupancy ≤ 42% when running OPC UA server + SQLite database + 4-channel video stream decoding simultaneously.
Intel UHD Graphics supports three-screen display (HDMI 2.0 + DP 1.2 + Type-C DP Alt Mode) with 4K60Hz output and delay < 5ms.

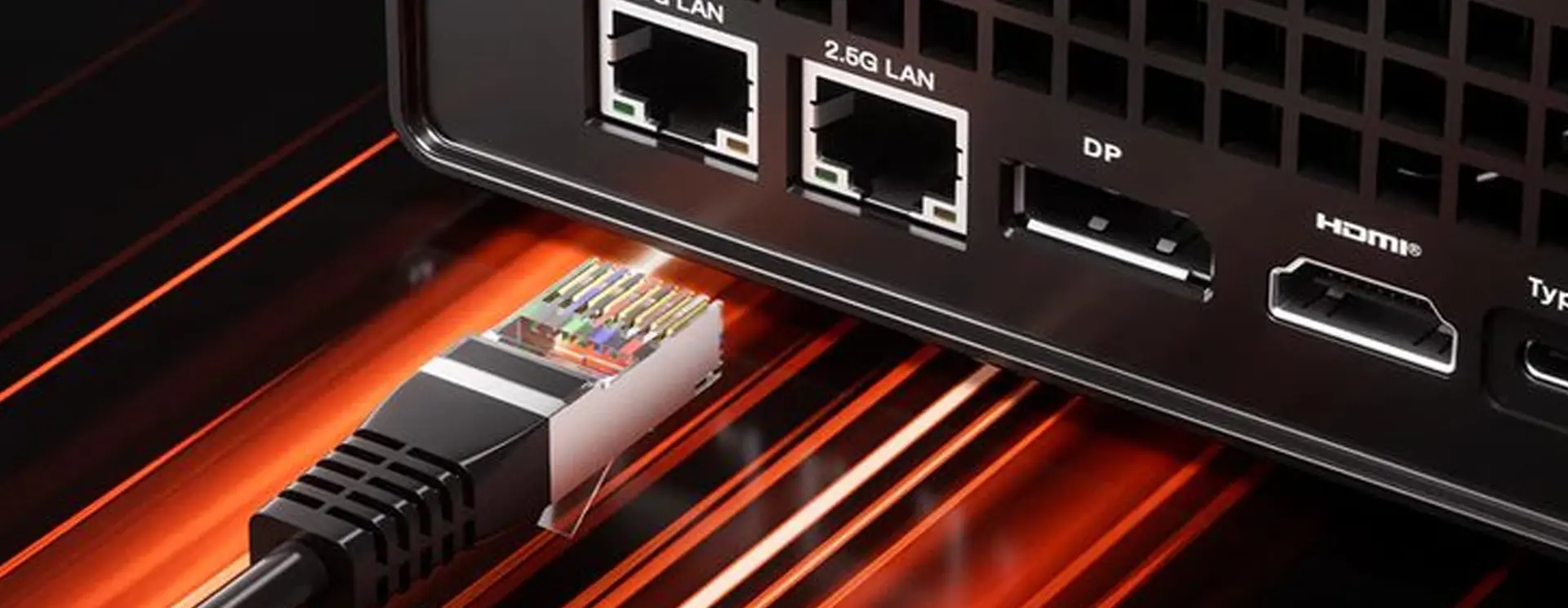

Full-Protocol Type-C & Industrial Interface Matrix

Intelligent Interconnection Hub

Type-C interface supports USB3.1 Gen2 (10Gbps) + DP1.4 + PD 3.0 power supply three-in-one, enabling one-line direct connection to touch screens and mobile devices. Dual Gigabit Ethernet ports support link aggregation (802.3ad) with peak bandwidth reaching 2Gbps.

Legacy Compatibility

RS232 DB9 serial port with built-in ±15kV ESD protection and baud rate adaptation (0~921.6kbps).
Dual USB3.0 + dual USB2.0 + SD card slot for parallel read/write across five devices.

Modular Storage & Wireless Expansion

Storage Solutions

M.2 2280 slot (NVMe Gen3x4) provides sequential read and write speeds up to 3500/3000MB/s. Optional 2.5-inch shockproof HDD (passed 5Grms vibration test) allows for up to 16TB of cold data storage.

Wireless Ecology

Expandable with WiFi 6E (6GHz) or Bluetooth 5.2 modules. Supports LoRaWAN gateway deployment via external antenna kits.

Military-Grade Compact Design

All-aluminum body (168.4×128.4×40mm) with IP43 protection level.
Fanless honeycomb heat dissipation for continuous full-load operation at 50℃.
VESA wall-mounted/desktop vertical installation with seismic performance up to 7Grms.
12-19V wide voltage input compatible with vehicle power supplies.

Industry Scenario Solutions

Smart Retail Terminal

Dual-screen display for product info and POS systems. Type-C direct connection for electronic price tags and SD card slot for quick content deployment.

Medical Imaging Workstation

DP+HDMI dual 4K output with DICOM mode color calibration. Optional antibacterial coating and isolated USB interfaces.

Rail Transit Control

Operates in extreme environments with optional -40℃ wide temperature kits. RS232 direct signal control with MTBF over 100,000 hours.

OEM/ODM Customization Service

Hardware Deep Customization

BIOS-level GPIO function definition, extended CAN bus, 4G modules, and POE+ power supply interfaces available.

Enterprise Management

Supports Intel vPro for remote maintenance and dual BIOS redundant design for safe firmware upgrades.

FAQ - Frequently Asked Questions

Q1: Which processors are compatible with this Mini PC?

A: The system supports 10th-generation Intel Comet Lake-U processors, including Core i7-10510U, i5-10210U, i3-10110U, and Celeron 5205U.

Q2: What is the maximum memory capacity supported?

A: It features dual DDR4 SO-DIMM slots supporting up to 64GB of RAM at frequencies up to 2666MHz.

Q3: Does the device support triple-screen display?

A: Yes, it supports three-screen display via HDMI 2.0, DP 1.2, and Type-C (DP Alt Mode) at 4K60Hz resolution.

Q4: Is the Mini PC suitable for harsh industrial environments?

A: Absolutely. It features a fanless all-aluminum body, IP43 protection, and can operate in temperatures ranging from 0~50℃ (expandable to -40~85℃ for industrial versions).

Q5: What are the storage expansion options?

A: It includes one M.2 2280 NVMe/SATA slot and one optional 2.5-inch SATA HDD slot for massive data storage.

Q6: Does it support remote management?

A: Yes, it supports Intel vPro for remote operation and maintenance, along with Wake-on-LAN (WOL) and PXE boot.
